| Engine Family | Big Block Chevy 24° |
|---|---|
| CID/Ltr | 580/9.5 |
| Bore Inch | 4.53 |
| Bore mm | 115.06 |
| Stroke Inch | 4.5 |
| Stoke mm | 114.3 |
| Rod Length | 6.8 |
| Comp Dist | 1.13 |
| Crown Volume | 25.7cc |
| CR 1 | 13.3 @ 112cc |
| CR 2 | 12.5 @ 118cc |
| CR 3 | 11.8 @ 124cc |
| Alloy | 4032 |
| Weight | 604 |
| Pin | 0.99 |
| Oil Rails Included | Yes |
| Top Ring | 1.5mm |
| 2nd Ring | 1.5mm |
| Oil Ring HT | 3.0mm |
| Piston Style | Dome |

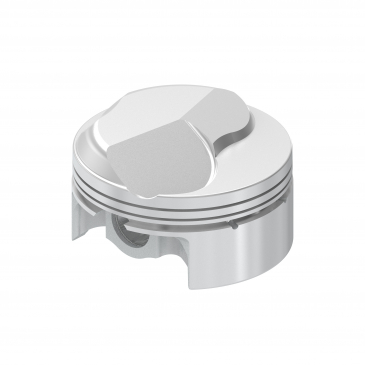

AutoTec, Big Block Chevy 24°, Dome, 4.530 Bore 4.500 Stroke 1.130 Comp HT
Need Tech Help? Call 714-903-4362
