| Engine Family | Big Block Ford 429/460 |
|---|---|
| CID/Ltr | 477/7.8 |
| Bore Inch | 4.44 |
| Bore mm | 112.78 |
| Stroke Inch | 3.85 |
| Stoke mm | 97.79 |
| Rod Length | 6.605 |
| Comp Dist | 1.77 |
| Crown Volume | -3cc |
| CR 1 | 12.4 @ 72cc |
| CR 2 | 11.9 @ 80cc |
| CR 3 | 10.2 @ 84cc |
| Alloy | 4032 |
| Weight | 668 |
| Pin | 1.04 |
| Oil Rails Included | N/A |
| Top Ring | 1/16" |
| 2nd Ring | 1/16" |
| Oil Ring HT | 3/16" |
| Piston Style | Flat Top, one valve relief |

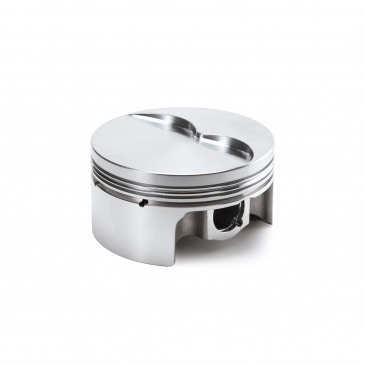

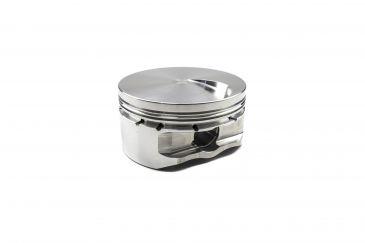

AutoTec, Big Block Ford 429/460, Flat Top, one valve relief, 4.440 Bore 3.850 Stroke 1.770 Comp HT
Need Tech Help? Call 714-903-4362
Please fill in the details below to calculate the compression ratio for your engine. Accurate inputs will give the best results. Once you’ve filled out the form, click “Calculate” to see your engine's compression ratio.
