| Engine Family | Big Block Ford 429/460 |
|---|---|
| CID/Ltr | 503/8.2 |
| Bore Inch | 4.39 |
| Bore mm | 111.51 |
| Stroke Inch | 4.15 |
| Stoke mm | 105.41 |
| Rod Length | 6.7 |
| Comp Dist | 1.53 |
| Crown Volume | -3cc |
| CR 1 | 13.0 @ 72cc |
| CR 2 | 12.5 @ 80cc |
| CR 3 | 10.7 @ 84cc |
| Alloy | 4032 |
| Weight | 617 |
| Pin | 0.99 |
| Oil Rails Included | N/A |
| Top Ring | 1/16" |
| 2nd Ring | 1/16" |
| Oil Ring HT | 3/16" |

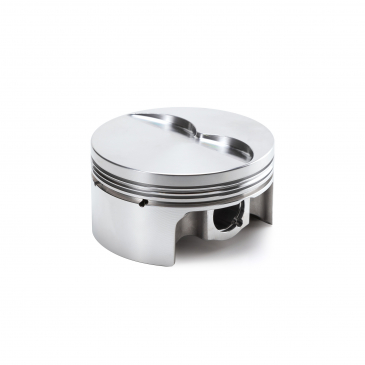

| Piston Style | Flat Top, one valve relief |
AutoTec, Big Block Ford 429/460, Flat Top, one valve relief, 4.390 Bore 4.150 Stroke 1.530 Comp HT
