| Engine Family | Small Block Ford 302/351W Twisted Wedge |
|---|---|
| CID/Ltr | 367/6.0 |
| Bore Inch | 4.145 |
| Bore mm | 105.28 |
| Stroke Inch | 3.4 |
| Stoke mm | 86.36 |
| Rod Length | 5.4 |
| Comp Dist | 1.1 |
| Crown Volume | -3.8cc |
| CR 1 | 12.2 @ 58cc |
| CR 2 | 11.2 @ 64cc |
| CR 3 | 10.7 @ 70cc |
| Alloy | 4032 |
| Weight | 505 |
| Pin | 0.927 |
| Oil Rails Included | Yes |
| Top Ring | 1.5mm |
| 2nd Ring | 1.5mm |
| Oil Ring HT | 3.0mm |
| Piston Style | Flat Top, two valve reliefs |

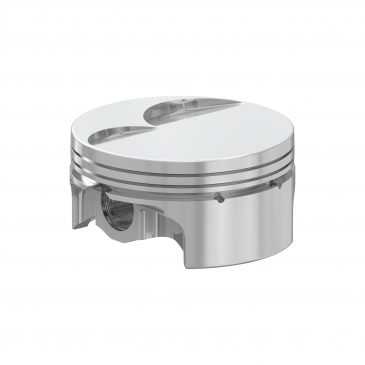

AutoTec, Small Block Ford 302/351W Twisted Wedge, Flat Top, two valve reliefs, 4.145 Bore 3.400 Stroke 1.100 Comp HT
Need Tech Help? Call 714-903-4362
