| Engine Family | Small Block Chevy 18° |
|---|---|
| CID/Ltr | 430/7.0 |
| Bore Inch | 4.135 |
| Bore mm | 105.03 |
| Stroke Inch | 4 |
| Stoke mm | 101.6 |
| Rod Length | 6 |
| Comp Dist | 1 |
| Crown Volume | -5.5cc |
| CR 1 | 14.2 @ 52cc |
| CR 2 | 13.6 @ 55cc |
| CR 3 | 13.1 @ 58cc |
| Alloy | 2618 |
| Weight | Call |
| Pin | 0.927 |
| Oil Rails Included | Yes |
| Top Ring | 1.5mm |
| 2nd Ring | 1.5mm |
| Oil Ring HT | 3.0mm |
| Piston Style | Flat Top, two valve reliefs |

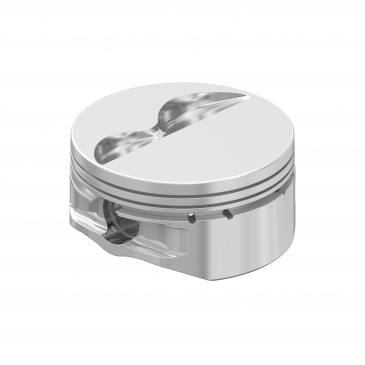

RaceTec, Small Block Chevy 18°, Flat Top, two valve reliefs, 4.135 Bore 4.000 Stroke 1.000 Comp HT
Need Tech Help? Call 714-903-4362
