| Engine Family | Small Block Ford 302/351W 20° |
|---|---|
| CID/Ltr | 409/6.7 |
| Bore Inch | 4.035 |
| Bore mm | 102.49 |
| Stroke Inch | 4 |
| Stoke mm | 101.6 |
| Rod Length | 6.3 |
| Comp Dist | 1.2 |
| Crown Volume | 3cc |
| CR 1 | 14.5 @ 58cc |
| CR 2 | 13.7 @ 64cc |
| CR 3 | 12.9 @ 70cc |
| Alloy | 2618 |
| Weight | Call |
| Pin | 0.927 |
| Oil Rails Included | N/A |
| Top Ring | 1.5mm |
| 2nd Ring | 1.5mm |
| Oil Ring HT | 3.0mm |
| Piston Style | Flat Top, two valve reliefs |

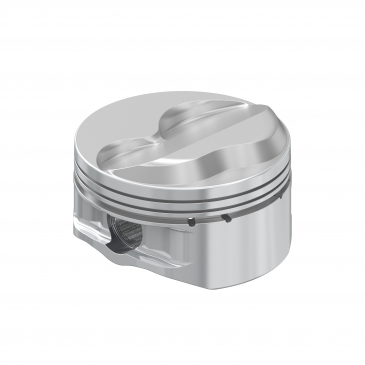

RaceTec, Small Block Ford 302/351W 20°, Flat Top, two valve reliefs, 4.035 Bore 4.000 Stroke 1.200 Comp HT
Need Tech Help? Call 714-903-4362
