| Engine Family | Small Block Ford ASCS 360/SPEC 360 |
|---|---|
| CID/Ltr | 362/5.9 |
| Bore Inch | 4.055 |
| Bore mm | 103 |
| Stroke Inch | 3.5 |
| Stoke mm | 88.9 |
| Rod Length | 6 |
| Comp Dist | 1.45 |
| Crown Volume | 12.4cc |
| CR 1 | 14.5 @ 58cc |
| CR 2 | 13.6 @ 62cc |
| CR 3 | 12.8 @ 66cc |
| Alloy | 2618 |
| Weight | Call |
| Pin | 0.927 |
| Oil Rails Included | N/A |
| Top Ring | 1.5mm |
| 2nd Ring | 1.5mm |
| Oil Ring HT | 3.0mm |
| Piston Style | Dome |

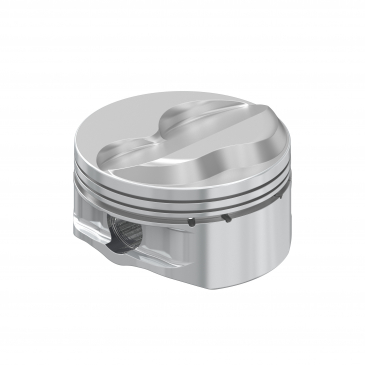

RaceTec, Small Block Ford ASCS 360/SPEC 360, Dome, 4.055 Bore 3.500 Stroke 1.450 Comp HT
Need Tech Help? Call 714-903-4362
Please fill in the details below to calculate the compression ratio for your engine. Accurate inputs will give the best results. Once you’ve filled out the form, click “Calculate” to see your engine's compression ratio.
